Florimène: John Webb's Section #5

Florimène at the Court of Charles I

Home

Sectional Views: Plan and Elevation Superimposed

Page 5 of 5
Main Menu
Plan View Sectional Views Wings Borders Stage Floor Apotheosis Area Relief Area
Previous Page

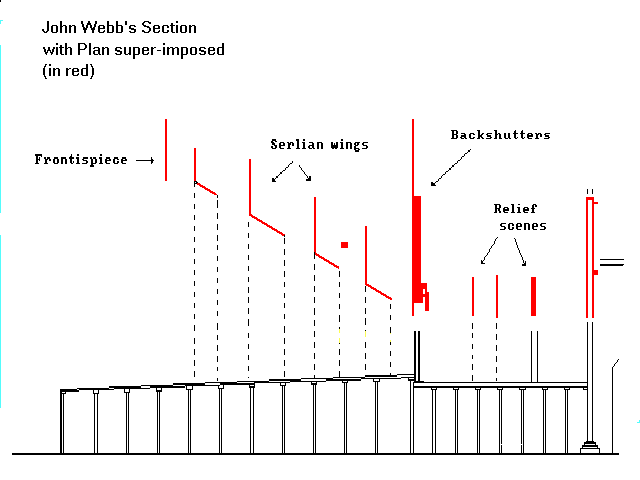

Here we have placed the stage-left half of John Webb's plan above the elevation, showing the relationship between the two drawings.
