The West Wing: Details of Stairs and Upper Floors

Sheet 2 of 2
Previous

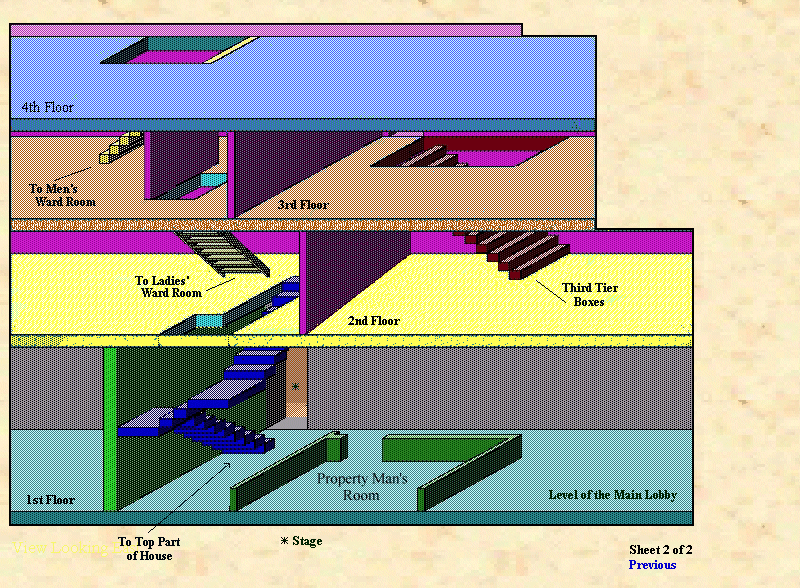

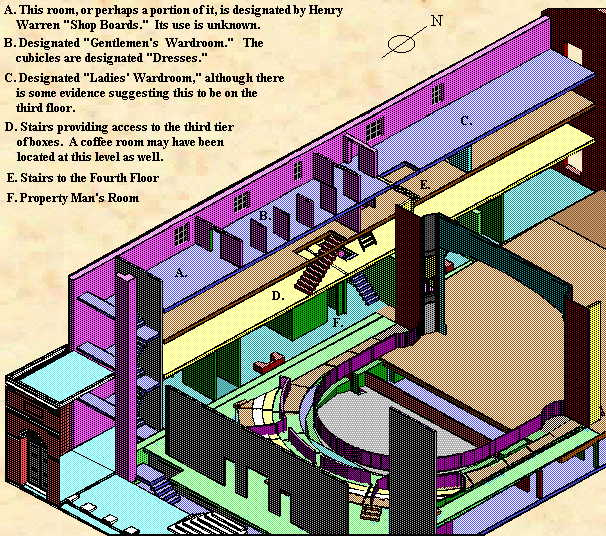

This schematic of the stairways in the West Wing (below) shows the arrangement developed from the Nisbet/Darley and Henry Warren plans of the theatre. The view is from the west, looking east. The asterisk just above the bottom of the (blue) stairway to the top of the house marks the location of the stage, seen through the doorway just upstage of the proscenium.
